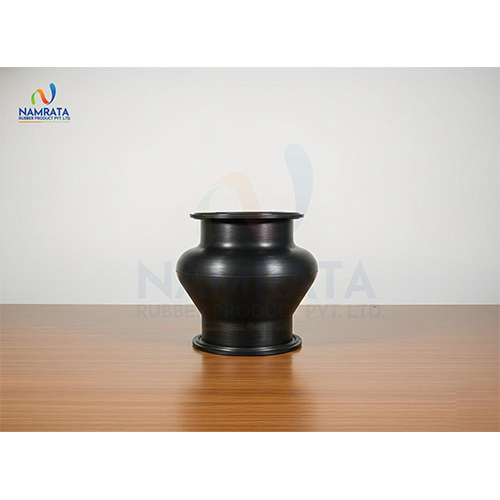

Silicone Antistatic Rubber Bellow

Name: Silicone Antistatic Rubber Bellow
Brand: Namrata Rubber Product
Price: 850 INR
Availability: InStock

Price 850 INR/ Number

Get a Price/Quote

Silicone Antistatic Rubber Bellow Specification

Water Absorption
<0.2% (by weight)

Nitrogen Content (%)
0.2%

Hardness
Shore A 40-70

Resistance level
High resistance to static discharge, chemicals, and UV

Tolerance
0.3 mm

Width
Customizable as per requirement

Part Type
Flexible Bellow/Cover/Boot

Components
Bellow body, end collars/rings (as per drawing)

Rubber Type
Platinum Cured/Antistatic Silicone Rubber

Size
Standard and custom sizes available

Surface Finish
Smooth/Matte/Custom

Feature
Antistatic, Flexible, Weather Resistant, Non-Toxic

Flame Resistance Level
UL 94 V-0 (Available on request)

Density
1.25 Gram per cubic centimeter(g/cm3)

Product Type
Antistatic Rubber Bellow

Thermal Conductivity
0.2 W/mK approx.

Material
Conductive/Antistatic Silicone Rubber

Tensile Strength
8-12 MPa

Color
Black

Thickness
2-8 mm (customizable)

Weight
Varies as per size and design

Natural Rubber
No (Silicone-Based)

Length
Custom length up to 3 meters

Style
Round/Sleeve/Custom

Temperature Resistance
-60C to +220C

Volatile Matter (%)
1%

Compression Ratio
Up to 4:1 (subject to design)

Diameter
15 mm to 150 mm (custom as required)

Ash %
0.8%

Usage & Applications
Used as a protective cover for joints, moving mechanical parts, and to prevent dust, moisture, and static discharge.

Chemical Resistance
Good resistance to solvents and mild chemicals

Ozone Resistance
Excellent

Installation
Clamp/Fit/Customised as per joint

Packaging
Polybag/Wooden Crate/Boxed

Electrical Surface Resistivity
10^6 - 10^8 Ohm/sq

Operating Pressure
0.2-1 bar (subject to design)

Elongation at Break
250%

Service Life
>10 years under recommended conditions

Customization Options
Shape, Color, End Design, Holes, and Inserts

Silicone Antistatic Rubber Bellow Trade Information

Minimum Order Quantity
2 Number

Supply Ability
1000 Per Week

Delivery Time
10 Days

About Silicone Antistatic Rubber Bellow

Get the popular Silicone Antistatic Rubber Bellow-a true champion for modern protection needs. Crafted as a masterpiece from platinum-cured, antistatic silicone rubber, this lavish bellow comes with exceptional electrical surface resistivity (10^6-10^8 Ohm/sq) and excellent ozone resistance. Built to master harsh conditions, it boasts a service life of over 10 years and remarkable flexibility. Select from a range of customizable shapes, sizes, and finishes to safeguard sensitive joints and moving mechanical parts from dust, moisture, static, and harsh chemicals. Supplied by leading manufacturers, suppliers, and exporters across India.

Silicone Antistatic Rubber Bellow: Features & Advantages

This lavishly engineered bellow includes antistatic, chemical, and weather resistance, along with flame-retardant properties (UL 94 V-0 available on request). Installation is effortless-choose clamp, fit, or custom joint methods. Class-leading compression ratio (up to 4:1), customizable end collars, and nitrogen content of 0.2% add to its performance. It excels as dust covers or flexible boots across diverse mechanical settings, combining enduring reliability with ease of application.

Delivery Time, Market Value, and Purchase Order Process

Delivered promptly to enhance market value, Silicone Antistatic Rubber Bellows are packaged securely in polybags, wooden crates, or boxes. Standard orders are dispatched within 1-2 weeks from the FOB port (India) upon approval of your purchase order. Flexible payment terms include bank transfer, LC, or custom arrangements. Choose us for a smooth, reliable buying experience that aligns with your schedule and budget.

FAQ's of Silicone Antistatic Rubber Bellow:

Q: How is the Silicone Antistatic Rubber Bellow installed in various joint applications?

A: The bellow can be installed using clamp, fit, or customized solutions based on the specific joint design, ensuring a secure and adaptable fit for any mechanical requirement.

Q: What primary benefits does the antistatic feature of the silicone bellow provide?

A: Its antistatic properties efficiently dissipate static electricity, preventing dust accumulation and protecting sensitive equipment from electrostatic discharge, thus enhancing system safety and longevity.

Q: When should I opt for customized sizes or shapes?

A: Opt for customized sizes, shapes, or end collar designs when standard options do not meet your application's specifications, or when unique joint geometries require a tailored solution.

Q: Where is this silicone bellow commonly used?

A: These bellows are popular in manufacturing plants, automation systems, electrical equipment, and areas where joints or moving mechanical parts require robust protection against dust, moisture, and static.

Q: What is the process for placing an order and receiving delivery?

A: Place a purchase order specifying your customization needs. After order acceptance, expect the product to be delivered within 1-2 weeks from the designated Indian FOB port, with secure packaging and flexible payment options.

Q: How does the service life of this bellow compare to other materials?

A: The silicone antistatic bellow offers a service life of over 10 years under recommended conditions-significantly longer than many conventional rubber alternatives, especially in demanding environments.
