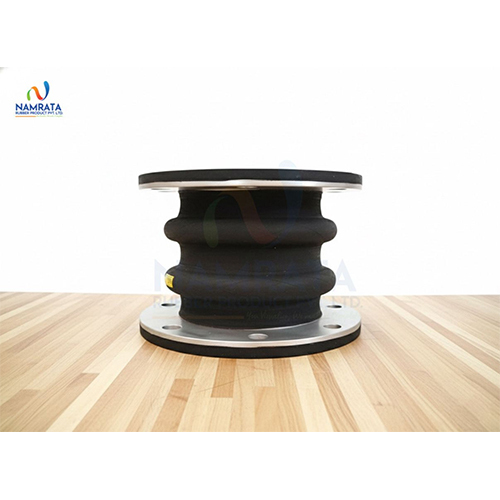

EPDM Rubber Expansion Bellow with MS Flanges
EPDM Rubber Expansion Bellow with MS Flanges

EPDM Rubber Expansion Bellow with MS Flanges

Price 850 INR/ Number

EPDM Rubber Expansion Bellow with MS Flanges Specification

  • Water Absorption
  • <5% by weight
  • Material
  • EPDM Rubber Bellow with MS Flanges
  • Feature
  • Excellent flexibility, anti-vibration, anti-corrosion, easy installation, noise reduction
  • Ash %
  • <1.5%
  • Weight
  • Varies with size (e.g., approx. 2 kg for DN50, up to 30 kg for DN600)
  • Tolerance
  • 2 mm (dimensional tolerances as per standards)
  • Width
  • Standard widths as per design, typically matches the diameter specification
  • Natural Rubber
  • No, made from EPDM Synthetic Rubber
  • Density
  • 1.20 Gram per cubic centimeter(g/cm3)
  • Flame Resistance Level
  • Not flame-retardant (EPDM is inherently not flame-resistant, but self-extinguishing)
  • Resistance level
  • High resistance to weathering, ozone, aging, acids, alkalis and hot water
  • Tensile Strength
  • 10 MPa
  • Components
  • EPDM Rubber body, reinforcing fabric/cord, Mild Steel flanges
  • Surface Finish
  • Smooth black surface (EPDM), painted MS flanges
  • Rubber Type
  • EPDM (Ethylene Propylene Diene Monomer)
  • Volatile Matter (%)
  • <2%
  • Style
  • Single or multi-arch bellow design
  • Usage & Applications
  • Absorbing thermal expansion, vibration and misalignment in pipelines, water supply systems, HVAC, chemical processing, and industrial applications
  • Temperature Resistance
  • -40C to +120C (short term: up to 140C)
  • Compression Ratio
  • Up to 10% of installed length
  • Diameter
  • 25 mm to 600 mm (DN25-DN600)
  • Thermal Conductivity
  • Approx. 0.25 W/mK
  • Thickness
  • 8 to 20 mm depending on size and pressure class
  • Nitrogen Content (%)
  • Negligible (not significant in EPDM formulation)
  • Size
  • DN25 to DN600 (custom sizes available upon request)
  • Length
  • 100 mm to 300 mm (size-dependent)
  • Color
  • Black
  • Hardness
  • 605 Shore A
  • Part Type
  • Flexible Joint/Bellow
  • Product Type
  • Rubber Expansion Bellow with Mild Steel (MS) Flanges
  • Flange Material
  • Mild Steel (galvanized/painted); optional Stainless Steel upon request
  • Burst Pressure
  • Minimum 3 times of working pressure
  • Connection Type
  • Drilled MS flanges as per ANSI/DIN/BS standards
  • Vacuum Resistance
  • 0.05 MPa (size and design-specific)
  • Installation
  • Can be installed horizontally or vertically
  • Working Pressure
  • Up to 16 bar (varies as per size and design)
  • Movement Capability
  • Axial: 20 mm, Lateral: 25 mm, Angular: 15 (size dependent)
  • Fabric Reinforcement
  • Polyester/Nylon for improved strength
  • Service Life
  • 5-10 years under recommended operation
  • Corrosion Protection
  • Anti-corrosive painting on flanges
  • Leakage Test Pressure
  • Up to 24 bar (hydraulic)


EPDM Rubber Expansion Bellow with MS Flanges Trade Information

  • Minimum Order Quantity
  • 2 Number
  • Supply Ability
  • 1000 Per Week
  • Delivery Time
  • 10 Days


About EPDM Rubber Expansion Bellow with MS Flanges



Discover a top-rated EPDM Rubber Expansion Bellow with MS Flanges, engineered for marvelous performance in demanding environments. Personalise your solution with a wide selection of sizes (DN25-DN600) and connection types, designed for unassailable durability. Reinforced with polyester/nylon fabric and protected by anti-corrosive painting, this enviable bellow absorbs vibration, thermal expansion, and misalignment in water, HVAC, and industrial pipelines. With a working pressure up to 16 bar and excellent resistance to chemicals and weather, this flexible joint ensures long-lasting, reliable service and easy installation.

Directions, Use and Application Method for EPDM Rubber Expansion Bellow

Install the EPDM Rubber Expansion Bellow with MS Flanges horizontally or vertically according to pipeline requirements. Used as a flexible joint in pipeline systems, it absorbs movement and vibration to protect installations. To apply, align and connect drilled MS flanges with matching standards (ANSI/DIN/BS), then secure with appropriate bolts. Regularly check for alignment and secure fit to ensure optimal performance in water supply, HVAC, chemical, and industrial applications.


Packaging, Sample Policy and Domestic Market Information

Each EPDM Rubber Expansion Bellow is securely packaged to prevent transit damage during drop-off and storage. Upon submission of a Purchase Order, order processing is efficiently handled for timely delivery. Samples are available upon request, making it easier to verify product quality before bulk orders. Serving the main domestic market across India, our rapid distribution ensures you receive your products intact and on schedule, supporting dealers, wholesalers, and project managers alike.


FAQ's of EPDM Rubber Expansion Bellow with MS Flanges:


Q: How should the EPDM Rubber Expansion Bellow with MS Flanges be installed?

A: The expansion bellow can be installed horizontally or vertically by aligning the drilled MS flanges with your pipeline system's standards (ANSI, DIN, BS) and securing them with bolts. Ensure proper alignment and follow recommended torque values for leak-proof performance.

Q: What are the main benefits of using this expansion bellow in pipeline systems?

A: This bellow provides excellent flexibility and high resistance to vibration, thermal expansion, chemical attack, and weathering, which helps protect pipelines from stress, misalignment, and movement, thus extending service life and reducing maintenance.

Q: Where can these expansion bellows be typically used?

A: EPDM Rubber Expansion Bellows are widely used in water supply networks, HVAC systems, chemical processing plants, and various industrial environments where there is a need to absorb thermal movements and reduce noise or vibration.

Q: What is the typical lead time and process for sample requests or purchase orders?

A: Samples are available upon request for evaluation. Upon receipt of your purchase order, the order is processed promptly and packed securely for safe drop-off. Delivery timelines may vary depending on destination and quantity but are minimized for domestic customers.

Q: How does the bellow ensure corrosion protection for the flanges?

A: The mild steel flanges are treated with anti-corrosive paint, ensuring long-term resistance to rust and degradation, even in demanding or humid environments.
