Send InquirySilicone Rubber Expansion Bellow
Price 950 INR/ Number
Silicone Rubber Expansion Bellow Specification
- Water Absorption
- Low (<0.4%)
- Usage & Applications
- Industrial ducting, HVAC systems, vibration absorption, chemical plants, pharmaceutical industry, food industry piping, and compensating for thermal expansion in pipelines.
- Components
- Single-molded body or reinforced with fabric
- Tensile Strength
- 8~12 MPa
- Hardness
- Shore A 40~70
- Length
- Custom as per application
- Feature
- Heat resistant, flexible, corrosion-resistant, non-toxic, food grade available
- Weight
- Depends on dimensions & size
- Size
- Up to 300 mm diameter or as customized
- Width
- Customizable as per requirement
- Color
- Red, White, or Transparent
- Temperature Resistance
- -60C to +230C (continuous), up to 250C (short term)
- Resistance level
- High resistance to chemicals, ozone, and weathering
- Tolerance
- 0.2 mm
- Rubber Type
- Silicone
- Natural Rubber
- No (100% Silicone Rubber)
- Compression Ratio
- Up to 25%
- Density
- 1.3 Gram per cubic centimeter(g/cm3)
- Surface Finish
- Smooth or textured as per requirement
- Flame Resistance Level
- Self-extinguishing, UL94 V-0 grade available
- Ash %
- Negligible (<1%)
- Style
- Flexible Joint
- Thermal Conductivity
- 0.2 W/mK
- Thickness
- 2 mm to 10 mm
- Product Type
- Expansion Bellow
- Material
- Silicone Rubber
- Diameter
- Up to 300 mm (custom sizes available)
- Part Type
- Pipe Bellow (Expansion Joint)
- Electrical Insulation
- Excellent dielectric properties
- Working Pressure
- Up to 10 bar
- Aging Resistance
- Superb aging stability
- UV Resistance
- Excellent
- Bursting Pressure
- Min. 12 kg/cm2 depending on design
- Elongation at Break
- 300~550%
- Odor
- Odorless
- FDA Compliance
- Available on request (for food & pharma use)
- Mounting Flange Option
- Available (stainless steel, aluminum, or customized)
- Reinforcement
- Nylon/Polyester/Aramid fabric or unreinforced as required
Silicone Rubber Expansion Bellow Trade Information
- Minimum Order Quantity
- 2 Number
- Supply Ability
- 1000 Per Week
- Delivery Time
- 10 Days
About Silicone Rubber Expansion Bellow
Select our classic Silicone Rubber Expansion Bellow for ace performance in demanding industrial applications. Lavish in both quality and durability, this bellow boasts superb aging stability, high resistance to chemicals, ozone, and weathering, plus excellent UV and thermal endurance. Ending soon is your opportunity to buy a bellow tailored to your needs-dimensions up to 300 mm, wide hardness range, and customizable features. FDA compliance is available for food and pharma use. Choose from reinforced or unreinforced styles, in red, white, or transparent. Stock ready across India for distributors, retailers, or exporters.
Versatile Applications & Material Excellence
The Silicone Rubber Expansion Bellow demonstrates versatility across multiple domains-HVAC systems, chemical plants, food and pharmaceutical pipelines, and industrial ducting. It plays a crucial role in compensating for thermal expansion, absorbing vibrations, and ensuring safe transfer in plant operations. Made from 100% silicone rubber, the bellow exhibits extraordinary flexibility, heat and corrosion resistance, making it ideal for both high and low-temperature processes that demand long-lasting material strength.
Packaging, Certifications & Ready Supply
Dispatched efficiently, each Silicone Rubber Expansion Bellow is securely packed as per application needs-bulk or customized packaging options are available. Certified for quality, FDA compliance can be offered for food and pharma requirements. With stock ready for prompt dispatch, we provide a consistent supply across India, serving dealers, distributors, exporters, and retailers. Our production and export capabilities enable us to offer quick lead times, ensuring your projects never experience unnecessary delays.
Versatile Applications & Material Excellence
The Silicone Rubber Expansion Bellow demonstrates versatility across multiple domains-HVAC systems, chemical plants, food and pharmaceutical pipelines, and industrial ducting. It plays a crucial role in compensating for thermal expansion, absorbing vibrations, and ensuring safe transfer in plant operations. Made from 100% silicone rubber, the bellow exhibits extraordinary flexibility, heat and corrosion resistance, making it ideal for both high and low-temperature processes that demand long-lasting material strength.
Packaging, Certifications & Ready Supply
Dispatched efficiently, each Silicone Rubber Expansion Bellow is securely packed as per application needs-bulk or customized packaging options are available. Certified for quality, FDA compliance can be offered for food and pharma requirements. With stock ready for prompt dispatch, we provide a consistent supply across India, serving dealers, distributors, exporters, and retailers. Our production and export capabilities enable us to offer quick lead times, ensuring your projects never experience unnecessary delays.
FAQ's of Silicone Rubber Expansion Bellow:
Q: How is the Silicone Rubber Expansion Bellow used in industrial applications?
A: It is commonly installed in pipelines, HVAC systems, and ducting to absorb thermal expansion, dampen vibration, and compensate for movement or misalignment, ensuring operational efficiency and extending the lifespan of connected equipment.Q: What materials are used for reinforcement in these bellows?
A: Depending on your requirements, bellows may be reinforced with nylon, polyester, or aramid fabric, or supplied unreinforced. Reinforcement enhances strength and pressure handling, making it suitable for varying industrial demands.Q: When should FDA-compliant Silicone Rubber Expansion Bellows be selected?
A: FDA compliance should be selected when the bellow is to be used in food processing, beverage, or pharmaceutical piping systems-anywhere direct contact with consumables or sensitive substances occurs.Q: Where can these expansion bellows be installed?
A: They are suitable for a diverse range of settings, including HVAC plants, chemical and pharmaceutical factories, food industry pipelines, and anywhere thermal expansion, vibration, or misalignment in piping requires compensation.Q: What are the benefits of the ace silicone material used in these bellows?
A: Silicone offers lavish durability, excellent flexibility, superb aging and UV resistance, and high performance in temperature extremes (-60C to +230C). It's non-toxic, corrosion-resistant, and maintains dielectric properties-ideal for sensitive and aggressive environments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Rubber bellows Category
Silicone Rubber Customised Bellow
Price 800 INR / Number
Minimum Order Quantity : 2
Material : 100% Food and Medical Grade Silicone Rubber
Water Absorption : <0.1%
Usage & Applications : Flexible sealing, dust protection, vibration isolation in machinery, automotive, and industrial devices
Components : Main bellow body, end flanges (optional)

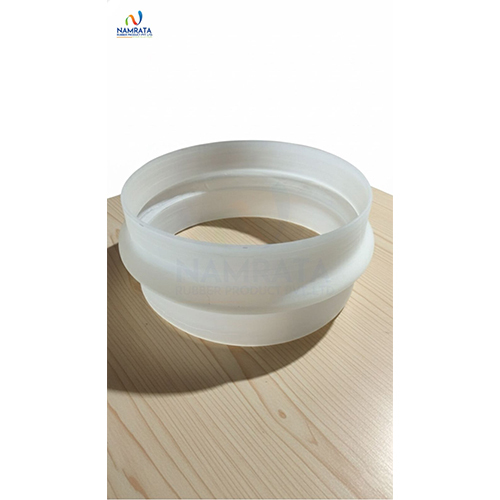

Silicone Rubber convolution Bellow
Price 900 INR / Number
Minimum Order Quantity : 2
Material : Foodgrade Silicone Rubber
Water Absorption : <0.5% (minimal)
Usage & Applications : Used as a flexible protective cover for joints, rods, pistons, shafts in machinery, automotive, medical, foodprocessing, and industrial equipment to prevent dust, moisture, and contaminants ingress.
Components : Single piece construction
EPDM Rubber Customised bellow
Price 800 INR / Number
Minimum Order Quantity : 2
Material : EPDM Rubber
Water Absorption : <1% by weight
Usage & Applications : Industrial machinery, automotive, HVAC systems, vibration isolation, duct connections
Components : Single moulded piece or multiply structure

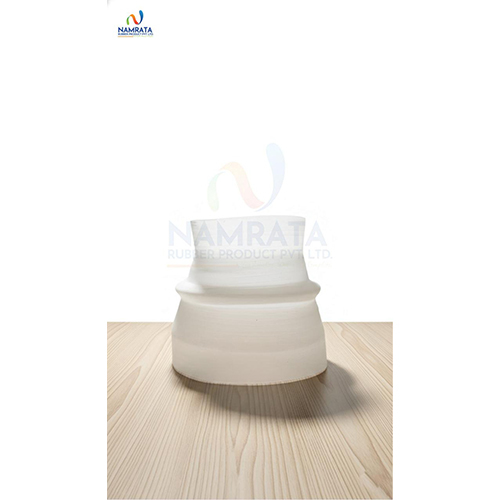

Silicone transparent Rubber Bellow
