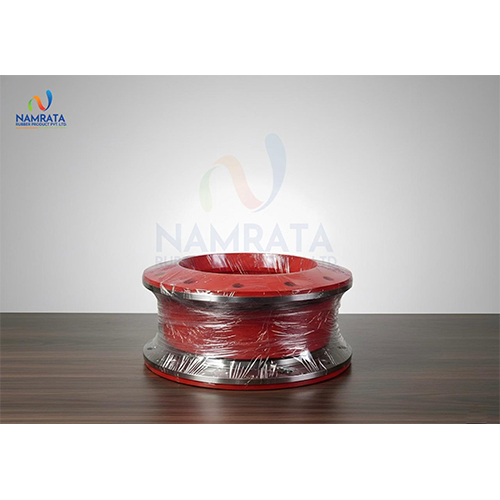

Silicone Food Grade Expansion Bellow with SS 304 Flanges

Name: Silicone Food Grade Expansion Bellow with SS 304 Flanges
Brand: Namrata Rubber Product
Price: 900 INR
Availability: InStock

Price 900 INR/ Number

Get a Price/Quote

Silicone Food Grade Expansion Bellow with SS 304 Flanges Specification

Style
Round Corrugated Bellow

Material
Platinum cured food grade silicone with SS 304 flanges

Surface Finish
Smooth, hygienic finish inside and outside

Width
Customizable as per requirement

Thermal Conductivity
0.24 W/mK

Color
Translucent white

Usage & Applications
Flexible connection in food and pharmaceutical process pipelines, vibration absorption, hygienic transfer of powders and liquids

Components
Silicone bellow, Stainless Steel 304 flanges

Product Type
Expansion Bellow

Natural Rubber
No, 100% Silicone

Hardness
60 5 Shore A

Compression Ratio
Up to 3:1

Flame Resistance Level
Meets FDA and USP Class VI flame standards

Tensile Strength
7 MPa

Density
1.18 Gram per cubic centimeter(g/cm3)

Length
150 mm (customizable as per request)

Feature
Food Grade, Non-toxic, Odorless, Flexible, Easily Cleanable

Resistance level
Excellent resistance to chemicals and temperature

Thickness
2.5 mm standard (customizable)

Rubber Type
Silicone (Food Grade)

Part Type
Flexible Connector

Size
4 inch (other sizes available on request)

Tolerance
1 mm

Weight
Approx. 0.95 kg (depends on size)

Diameter
100 mm (standard, customizable)

Temperature Resistance
-50C to +200C continuous

Water Absorption
<0.1%

Microbial Growth
Resistant, does not support

Flange Material
Stainless Steel 304, mirror finish

Service Life
Long service life with repetitive flexing

Aging Resistance
Excellent

Sanitization Compatibility
Steam, hot water, CIP/SIP ready

Compliance
FDA 21 CFR 177.2600, USP Class VI, BfR compliant

Connection Type
Bolt-on flange

End Connection
Drilled to ANSI/ASME B16.5, DIN standard available

Installation
Quick install, no special tools required

Packaging
Individually polybagged, carton protected

Bore Smoothness
Hygienic, crevice-free bore

Pressure Rating
Max. 4 bar working pressure

Elongation at Break
>= 350%

Silicone Food Grade Expansion Bellow with SS 304 Flanges Trade Information

Minimum Order Quantity
2 Number

Supply Ability
1000 Per Week

Delivery Time
10 Days

About Silicone Food Grade Expansion Bellow with SS 304 Flanges

Experience prime quality and competitive pricing with our First-class Silicone Food Grade Expansion Bellow, featuring famed platinum-cured silicone and mirror-finish SS 304 flanges. Grab the opportunity to take advantage of FDA, USP Class VI, and BfR compliance with a hygienic, crevice-free bore ideal for food and pharmaceutical process pipelines. Designed with superior resistance to chemicals, temperature, and microbial growth, this flexible connector assures long service life, quick installation, and easy cleaning-delivering optimal performance even under demanding, hygienic applications. Custom sizes and widths available. Made in India, trusted by dealers, exporters, and manufacturers.

Hygienic Solution for Sensitive Applications

The Silicone Food Grade Expansion Bellow with SS 304 Flanges is constructed for applications demanding top hygiene, such as food, dairy, beverages, and pharmaceuticals. Its smooth, non-porous finish and crevice-free design aid in preventing bacterial contamination, making it perfect for the hygienic transfer of powders and liquids. The flexibility and vibration absorption make it ideal for both static and dynamic pipelines, ensuring operational reliability and extended service life.

Prompt Supply & Global Market Coverage

Samples of our Silicone Food Grade Expansion Bellow with SS 304 Flanges are quickly available upon request. We offer secure payment terms and ensure swift dispatch and reliable shipment for domestic and international clients. Our competitive sale price and robust export capabilities make us a preferred supplier across India and main export markets worldwide, including Europe, Asia, and North America. Trust in our efficient service for rapid, on-time deliveries every time.

FAQ's of Silicone Food Grade Expansion Bellow with SS 304 Flanges:

Q: How is the installation process of the Silicone Food Grade Expansion Bellow conducted?

A: Installation is simple and fast-these bellows are designed for bolt-on connections and do not require special tools. The process allows for quick setup, minimizing operational downtime.

Q: What are the primary areas of application for the Silicone Food Grade Expansion Bellow?

A: These bellows are engineered for food and pharmaceutical process pipelines. They are especially suited for hygienic powder and liquid transfer, vibration absorption, and flexible pipeline connections.

Q: When can I expect dispatch and delivery after placing an order?

A: We prioritize quick dispatch and strive to ship your order promptly after payment confirmation. Shipping timelines depend on destination, but our well-organized logistics ensure rapid delivery both domestically and internationally.

Q: Where can these expansion bellows be utilized?

A: They can be installed in any environment requiring hygienic and flexible connections, such as dairy plants, food-processing facilities, beverage manufacturing units, and pharmaceutical production lines.

Q: What advantages does this product offer over traditional connectors?

A: Benefits include superior chemical and temperature resistance, non-supportive microbial surfaces, first-class hygienic finish, easy cleaning, and extensive service life. They also maintain flexibility and prevent leaks even with repetitive flexing.
