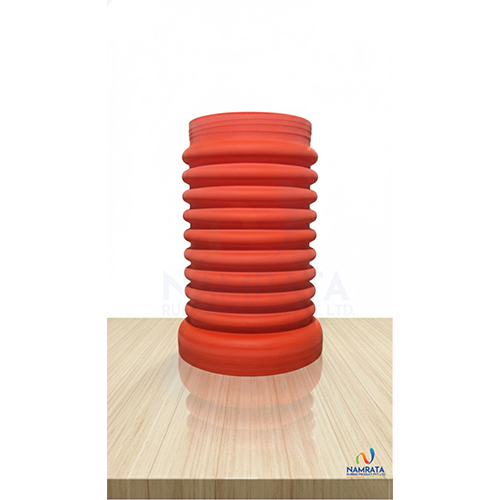

Silicone rubber bellow with TC and fabric reinforcement

Send Inquiry

Request To Call Back

Silicone rubber bellow with TC and fabric reinforcement

Name: Silicone rubber bellow with TC and fabric reinforcement
Brand: Namrata Rubber Product
Price: 850 INR
Availability: InStock

Price 850 INR/ Number

Get a Price/Quote

Silicone rubber bellow with TC and fabric reinforcement Specification

Diameter
25 mm - 300 mm or as per specification

Components
Silicone Rubber, Reinforcing Fabric Layer, TC (Tri-Clamp) End Fittings

Temperature Resistance
-60C to +220C continuously, short term up to 250C

Length
Custom lengths available as per client requirement

Product Type
Silicone Rubber Bellow with TC and Fabric Reinforcement

Color
Translucent, Red, or White (custom colors available)

Natural Rubber
No - Silicone based

Density
1.3 Gram per cubic centimeter(g/cm3)

Hardness
60 5 Shore A

Rubber Type
Silicone

Size
As per design specification or customized

Tolerance
0.5 mm

Part Type
Bellow / Expansion Joint

Compression Ratio
Up to 3:1 depending on design

Thickness
2 mm - 6 mm (customized as required)

Water Absorption
<0.1% (very low for silicone)

Ash %
<1% (typically negligible for silicone rubber)

Surface Finish
Smooth/Matte outer surface

Weight
Varies with size and thickness

Style
Corrugated/Flexible Bellow

Volatile Matter (%)
<1%

Width
Customizable as per requirement

Feature
Non-toxic, High Flexibility, Excellent Chemical Resistance, Easy Installation

Flame Resistance Level
Class UL94 V-0 (self-extinguishing options available)

Tensile Strength
8-10 MPa (typical for reinforced silicone bellows)

Material
Silicone Rubber with Polyester or Glass Fabric Reinforcement

Thermal Conductivity
~0.2 W/mK

Usage & Applications
Flexible connections for piping, ducts, vibration isolation, expansion joints, pharmaceutical, food, and cleanroom industries

Resistance level
Excellent resistance to heat, weather, ozone, and chemicals

Minimum Bend Radius
3x diameter (varies as per custom design specification)

Sterilization Capability
Autoclavable and CIP/SIP compatible

Service Life
Long operational life with proper installation and use

UV Stability
Excellent - suitable for outdoor use

Clamping Options
Tri-Clamp (TC) Stainless Steel Ends for sanitary connection

Pressure Rating
Up to 5 bar depending on diameter/thickness

Electrical Insulation
High dielectric strength

Installation Method
Clamp-on, flange-mount or custom as per pipeline system

Chemical Compatibility
Excellent with acids, alkalis, and cleaning agents

Brand/Manufacturer
As per client requirement or third-party OEM

Reinforcement Material
Polyester or Glass Fabric embedded for added strength

Odor/Taste
Odorless and tasteless, suitable for sensitive applications

Silicone rubber bellow with TC and fabric reinforcement Trade Information

Minimum Order Quantity
2 Number

Supply Ability
1000 Per Week

Delivery Time
10 Days

About Silicone rubber bellow with TC and fabric reinforcement

Unlock enviable durability and potent chemical resistance with our magnificent Silicone Rubber Bellow featuring TC stainless steel ends and reinforced with robust fabric. Designed for superior flexibility and strength, this bellow boasts exceptional compatibility with acids, alkalis, and cleaning agents. Shop now to equip your system with unparalleled UV stability and high dielectric strength, ensuring lasting performance even in challenging environments. Available at an unbeatable price, it's the ideal non-toxic solution for sensitive applications in pharmaceutical, food, and cleanroom industries. Custom sizes and colors available.

Optimal Application & Versatility for Demanding Media

This magnificent silicone rubber bellow with TC and fabric reinforcement provides enviable flexibility and reliable performance for a wide range of media-acidic, alkaline, or sanitizing agents. Designed for plant applications including vibration isolation, expansion joints, and flexible connections in pharmaceutical, food, and cleanroom facilities, it integrates easily by clamp-on, flange-mount, or customized installation methods, ensuring seamless operation across pipelines, ducts, and sensitive processing environments.

Premium Payments, Swift Delivery & Certified Excellence

Request a quotation for unbeatable prices and experience premium service from order to packaging. We ensure prompt delivery times tailored to your requirements, with options for customized labeling. Each silicone rubber bellow is supported by relevant certifications, attesting to its quality and safety in demanding applications. Our streamlined purchasing process ensures secure payment terms, expedient handling, and global distribution for retailers, wholesalers, and producers across India.

FAQ's of Silicone rubber bellow with TC and fabric reinforcement:

Q: How does the TC stainless steel clamping ensure a sanitary connection?

A: The Tri-Clamp (TC) stainless steel ends provide a secure, leak-proof, and easily cleanable connection, making them ideal for sanitary applications such as food, pharmaceutical, and cleanroom industries.

Q: What environments and media are the reinforced silicone rubber bellows suitable for?

A: These bellows excel in environments exposed to acids, alkalis, cleaning agents, and a wide temperature range, making them perfect for plants handling aggressive chemicals or needing robust UV resistance outdoors.

Q: When should I consider using fabric-reinforced silicone bellows over standard ones?

A: Fabric reinforcement, using polyester or glass fabrics, enhances pressure resistance and operational life, making these bellows ideal when greater mechanical strength and longevity are required for demanding processes.

Q: Where can I use this product within my facility?

A: These bellows can be installed wherever flexible, hygienic connections are necessary-such as in vibration isolation sections, expansion joints, or between piping in cleanrooms, laboratories, or food-processing lines.

Q: What makes this silicone bellow safe for sensitive applications?

A: The bellow is non-toxic, odorless, tasteless, and has minimal water absorption, making it ideal for maintaining product quality in applications where purity is essential, including pharmaceutical or food production.
